JACC Introduction

JACC.jl is a Julia package for performance portable CPU/GPU kernels using metaprogramming on top of existing Julia backends. It enables users to write a single code based on an array memory model and parallel_for and parallel_reduce functions that can run on both CPUs and GPUs without needing to rewrite the code for each platform.

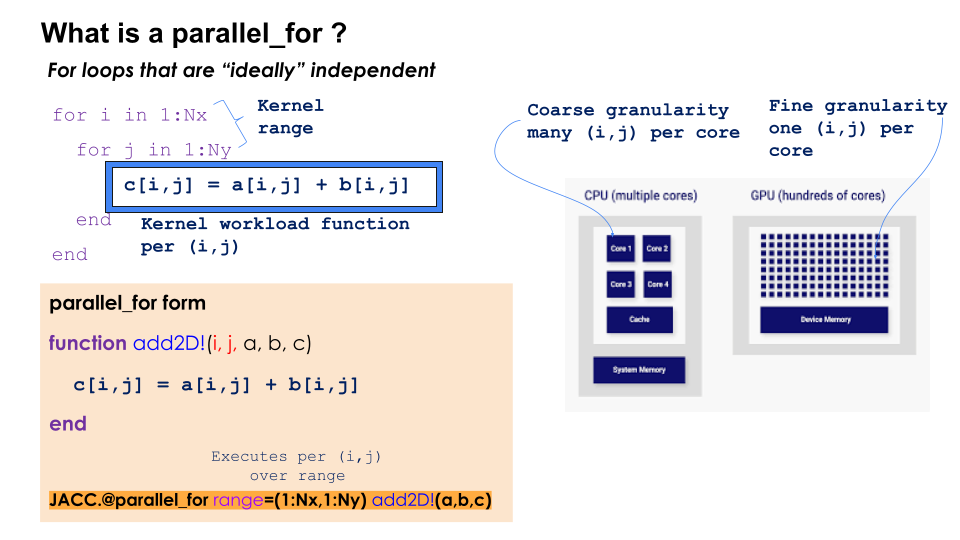

As shown in the schematics, parallel_for (and parallel_reduce) constructs are functional forms of for-loops that can be executed in parallel on multiple processing units (e.g., CPU cores, GPU threads). They allow users to express parallelism in their code without dealing with low-level threading or synchronization details across vendor architectures. JACC provides a unified API to launch parallel workloads on different back ends (CPU/GPU) without changing the user's code.

While the JuliaGPU ecosystem provides powerful tools for GPU programming, JACC sits on top of these backends leveraging these capabilities to simplify the process of writing portable code that can run on both CPUs and GPUs without modification. Thus filling a gap in the Julia ecosystem for productive, high-level programming for performance portability across heterogeneous computing platforms.

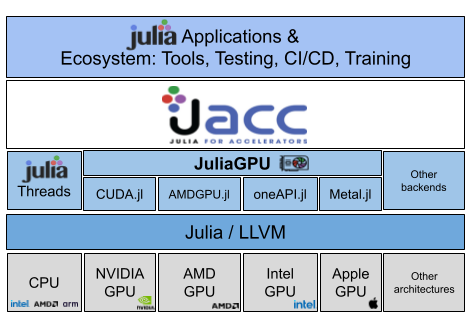

JACC architecture overview:

Resources:

• For a broader understanding of JACC's design principles and goals, please refer to the JACC paper at SC-W 2024 - open version available here.
• For a full example using JACC, see the Gray-Scott code and "Julia for HPC" Tutorial material

Why Julia?

Julia enables scientists and engineers to write code more quickly and to focus on their science or technical domain.

• Julia combines high-level/low-level capabilities for easy to read and write code due to its expressive mathematical syntax (e.g. arrays, GPU programming, parallelization).
• Julia's just-in-time (JIT) compilation based on LLVM allows for speeds comparable to C, C++ or Fortran.
• Julia's unified package manager, Pkg.jl, simplifies the process of managing dependencies.
• Julia's rich ecosystem includes a wide range of libraries and tools for scientific computing, data analysis, and machine learning.

Supported backends

• CPU (default):
  • Threads: multi-threading on CPU using Julia's built-in threading capabilities.
• GPU from JuliaGPU:
  • CUDA: NVIDIA GPUs using the CUDA.jl package.
  • AMDGPU: AMD GPUs using the AMDGPU.jl package.
  • Metal: Apple Silicon GPUs using the Metal.jl package.
  • oneAPI: Intel GPUs using the oneAPI.jl package (Experimental).

Installation

JACC is a registered Julia package. Install JACC using Julia's Pkg.jl capabilities for managing packages. e.g.

Installation from the Julia REPL:

julia> ]
pkg> add JACC

from command line (e.g. CI):

julia -e 'using Pkg; Pkg.add("JACC")'

Quick start - filling and reducing an array

Prerequisite:

• Julia 1.11 or later

To run an example from scratch

• Install JACC.jl

julia -e 'using Pkg; Pkg.add("JACC")'

• Copy this file to your local machine and save it as jacc-saxpy.jl:

import JACC
JACC.@init_backend

function axpy(i, alpha, x, y)
    @inbounds x[i] += alpha * y[i]
end

N = 10
alpha = Float32(2.0)
x = JACC.zeros(Float32, N)
y = JACC.array(fill(Float32(5), N))
JACC.@parallel_for range=N axpy(alpha, x, y)
@show x
x_sum = JACC.parallel_reduce(x)
@show x_sum

• Run the example using the default Threads back end with 4 threads:

julia -t 4 jacc-saxpy.jl

• Switch to another backend, e.g. assuming access to NVIDIA GPU and that CUDA is installed and configured:

julia -e 'using JACC; JACC.set_backend("CUDA")'

• Run the example again, but this time the same code will run on the GPU:

julia jacc-saxpy.jl
